The fully tested straw panels are certified to have a thermal resistance of 0.056 W/mK with a fabulous overall U-value of 0.110 W/m2K (R=9.3) including the 100mm of woodfibre board to the exterior. The thermal mass and slow phase shift (time until summer heat will manifest itself inside) will provide high summer comfort. As a comparison, the phase shift of straw and wood is 40 minutes/cm compared to 13 minutes/cm for EPS and 15minutes/cm for Mineral insulation - outperforming such conventional materials in maintaining stable and comfortable indoor temperatures.
We have developed a system that both achieves the level of air tightness demanded by the passive house standard and yet keeps the wall completely vapour permeable. Because the wall system allows vapour to escape through to the outside (so called "breathing walls"), the system has designed out the possibility of damp in the walls, which is a major problem in modern, 'sealed' interiors. The airtight, vapour permeable system also creates a draught free and healthy indoor climate. Clay plaster, with its humidity regulation properties, can be applied directly to the straw panel surface.
An EcoCocon house is made up of healthy, natural materials, with no artificial or polluting additives and so does not of itself create harmful toxins. However, in an indoor, closed environment most contemporary items like furniture, clothes, electronics & plastics will off-gas harmful substances. Clay has been known for thousands of years to remove toxins from the atmosphere, nevertheless we recommend installing an optional ventilation system - active or passive.
Clay plaster is a very effective humidity regulator, which is very important for human health. Clay absorbs excess humidity in areas such as kitchens and bathrooms and also releases humidity if the surrounding air is too dry. This effectively deals with issues such as condensation and toxic mold growth - neither of which will be found in clay plastered, vapour permeable EcoCocon houses. The well insulated walls will also minimise temperature differences between surfaces and the indoor air, ensuring no cold spots or draughts.
During their growth cycle both straw and wood transform CO2 into stored carbon - a process called sequestration. Each square metre (m2) of EcoCocon wall surface area stores approximately 75kg of sequestered CO2. A small house will therefore store around 10 tonnes of CO2, and rather than being a liability to the environment (as almost all contemporary construction techniques are), it instead becomes a carbon asset to the environment for the lifespan of that building. Transportation has a negligable effect on this equation.
The extraordinary insulation in the passive house quality of the walls will further reduce your carbon footprint because of the greatly reduced heating and cooling demand. A typical EcoCocon house will save approx. 1 tonne of CO2 per year on energy demand, compared to a standard house. This translates to huge CO2 savings over the lifetime of the building, whilst increasing your comfort. So you can have your cake and eat it too!
With this accessible and adaptable modular building system, the architect has total freedom of design. The modular panels come in a range of standard widths from 400mm to 1200mm and a range of standard heights from 400mm to 3000mm. Loadbearing lintels, inclined tops for gable walls and braced corners also form part of the EcoCococon range. Check out the Download Section where a design manual for architects is available.
Show us your plans! If you already have plans drawn up, we can adapt our modules to your bulding design, or our partners can offer architectural services. Our predesigned details achieve a much higher energy standard than is usually possible in construction, and now through EcoCocon, it's possible to have it all, energy efficiency and healthy, natural, environmentally sensitive materials. It's therefore never too late to choose EcoCocon to build your dream house ! Find our partner closest to you on the contact page and ask them for an estimate.

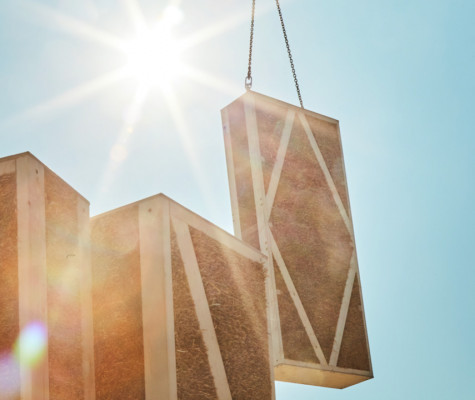

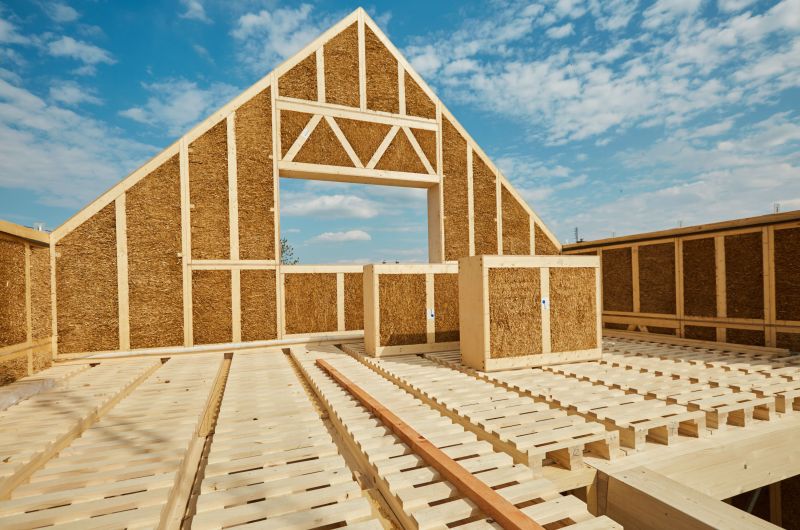

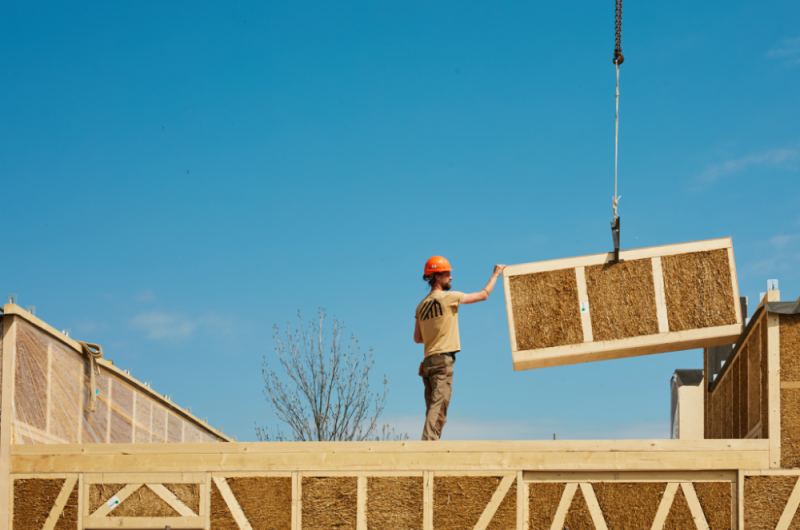

Assembling the modules on site is very fast. We deliver clearly numbered and colour coded panels to site together with a panellised 'map' for easy location of panels. See the download section where the assembly procedure is explained. No expensive specialist tools are required, only standard tools and screws are needed for assembly. You can practically do it yourself!

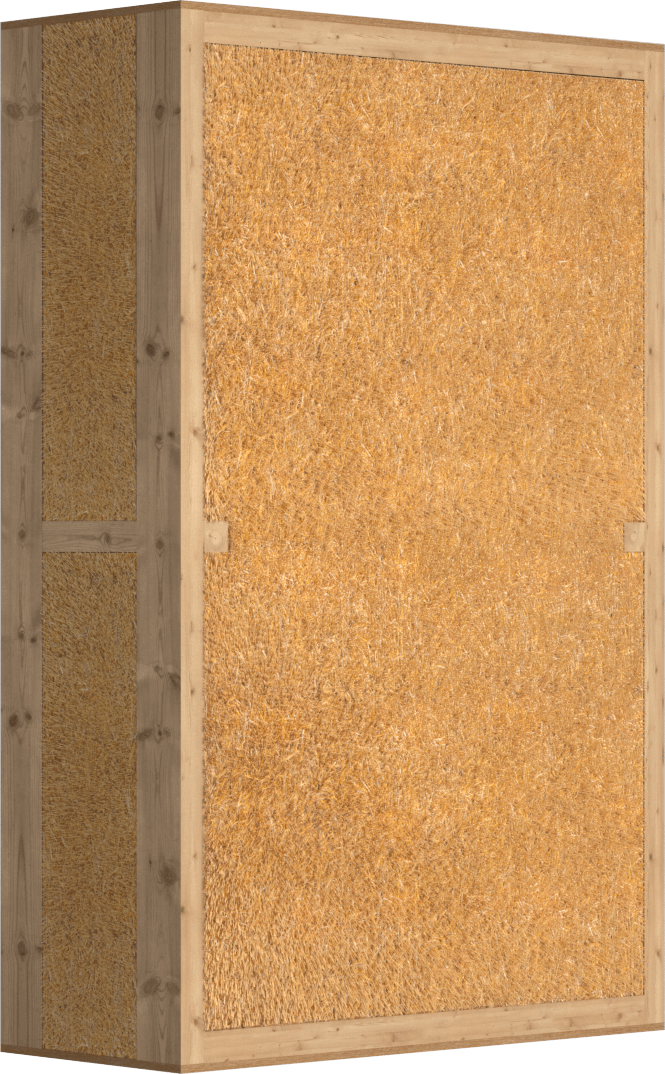

The structural integrity of the panel is achieved by the integrated timber frame construction designed to avoid thermal bridging. We provide loading calculations so your design can be easily and quickly calculated by your structural engineer. The compressed but flexible straw can take high loads without losing its integrity, even in extreme cases such as earthquakes.
Our partner teams and their local builders will be happy to assist you in the fast and efficient construction of your building project - we want to support everyone wherever you may live, in choosing to build healthy, comfortable and durable homes. That's why we've put a lot of effort into creating a fully tested construction system with all the necessary certifications required in Europe.
In addition, the Passivhaus and Cradle to Cradle certifications provide you with the reassuring guarantee that our panels and building solutions have been rigorously and successfully tested, and are exceptional in environmental, thermal and structural performance. The Passivhaus certification is backed up with a library of accessible details and a comprehensible airtightness concept.
The cost of walls is generally a relatively small percentage of the overall costs of a house build, usually around 15%-20%. However, with the Eococon panel system, you need no freestanding frame nor wall insulation - the panels themselves comprise frame and insulation in one. And why compromise on quality, health and high thermal performance? It's always important to consider the cost to you and the environment of the complete house during its lifetime, not just the separate components.
Compare our range of 'kit' and 'type' houses, and estimate what kind of house best fits your budget and vision. We provide a variety of solutions for any budget. If you already have have house designed or plan to design with your own architect, remember to ask us for an up-front estimate for the Ecococon panels.
It is usual for a team of three people to assemble 60-80m2 of wall per day. Like a 3D jigsaw, colour coded and numbered panel elements make assembly a breeze! The work can be done by carpenters and any builder used to working with timber construction. A complete assembly guide is available in the download section.
Small detailing, such as how the employment of the airtight membrane doubles up as weather protection during construction (nice!) and how the flat and uniform surface of the straw (very nice!) speeds up clay plaster application, making this system a pleasure to work with for builders, professional trades and craftsfolk alike.
A well designed EcoCocon Passivhaus will minimise all heating, cooling, hot water and household electricity costs - which can translate into hundreds of £/€ saved annually, and thousands over the decades, substantially lessening the financial burden on you each and every year. Clients who have built EcoCocon Passive Houses are fully confident they will be able to afford to stay living in them right into retirement.
Advances in renewable energy technology and batteries are making it more cost effective to provide all domestic energy requirements the renewable way, but to maximise these benefits, the building should be designed to be as energy efficient as possible in the first place. Investing in the envelope (thermal outer shell) of your building is future proofing your home with a high return on investment.

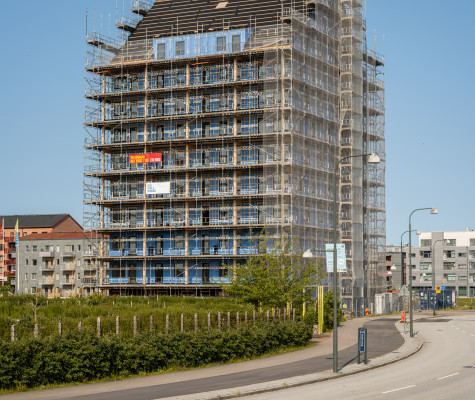

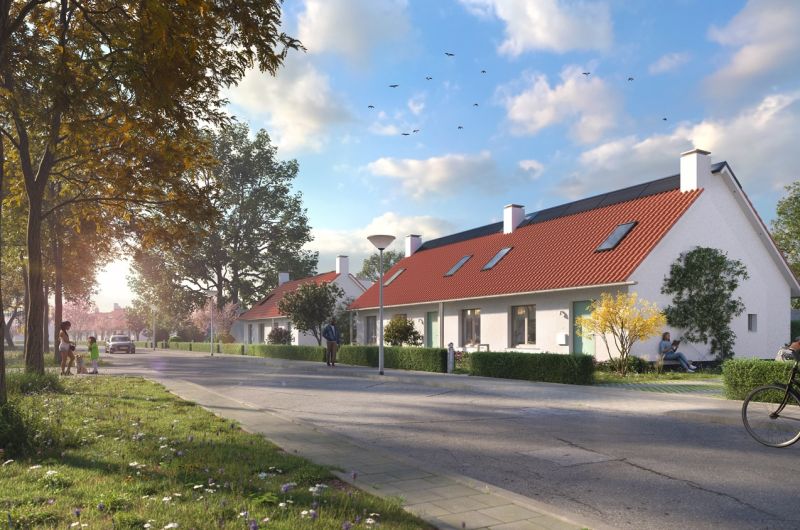

Much larger buildings with EcoCocon panels are on the near horizon, and we are currently working with several concepts. Some large pilot projects are already in development and we're excited to support these and to continue to work in partnership across the whole of Europe to demonstrate panel use as a universally applicable system for large buildings and developments.
Continued rationalisation of the production process and increased mechanisation will enable the introduction of production directly into partner countries, offering local manufacture whilst retaining our commitment to affordable costs. As demand for panel production continues to increase, there is more and more scope to make the panel system ever more cost effective in the future.
EcoCocon's central base provides system wide solutions and processes but it's our country partners that adapt these to the local demands and specific needs of each client, architect, or developer. It is thanks to our unique Network that EcoCocon can become a trans-european (or even global) player, whilst remaining true to local requirements and traditions at the same time.
We are planning future regional production sites in partner countries as franchise or licensed operations. We strongly believe production should be as local as possible, using local materials. Initially however, we need to create the necessary demand for this healthy housing panel system in our partner countries. Thank you for supporting this development!
Our planet's resources are limited, and it's our responsibility to use these wisely and sustainably. We are dedicated to creating a complete and cost effective ecological building solution that is able to compete financially with the industrially polluting norm of the mainstream building industry, whilst offering superior quality, performance and health benefits. We aim to help decarbonise construction. This is not about one product, but a vision of a better world.
We are committed to continuing innovation in achieving the very best, fast, healthy, durable and sustainable construction system that offers outstanding performance. We are passionate about improving quality of life for all, whilst reducing the costs of living - to you and for the planet. This is the time to make choices. We can help you make an affordable choice that's also a true investment for the future.
